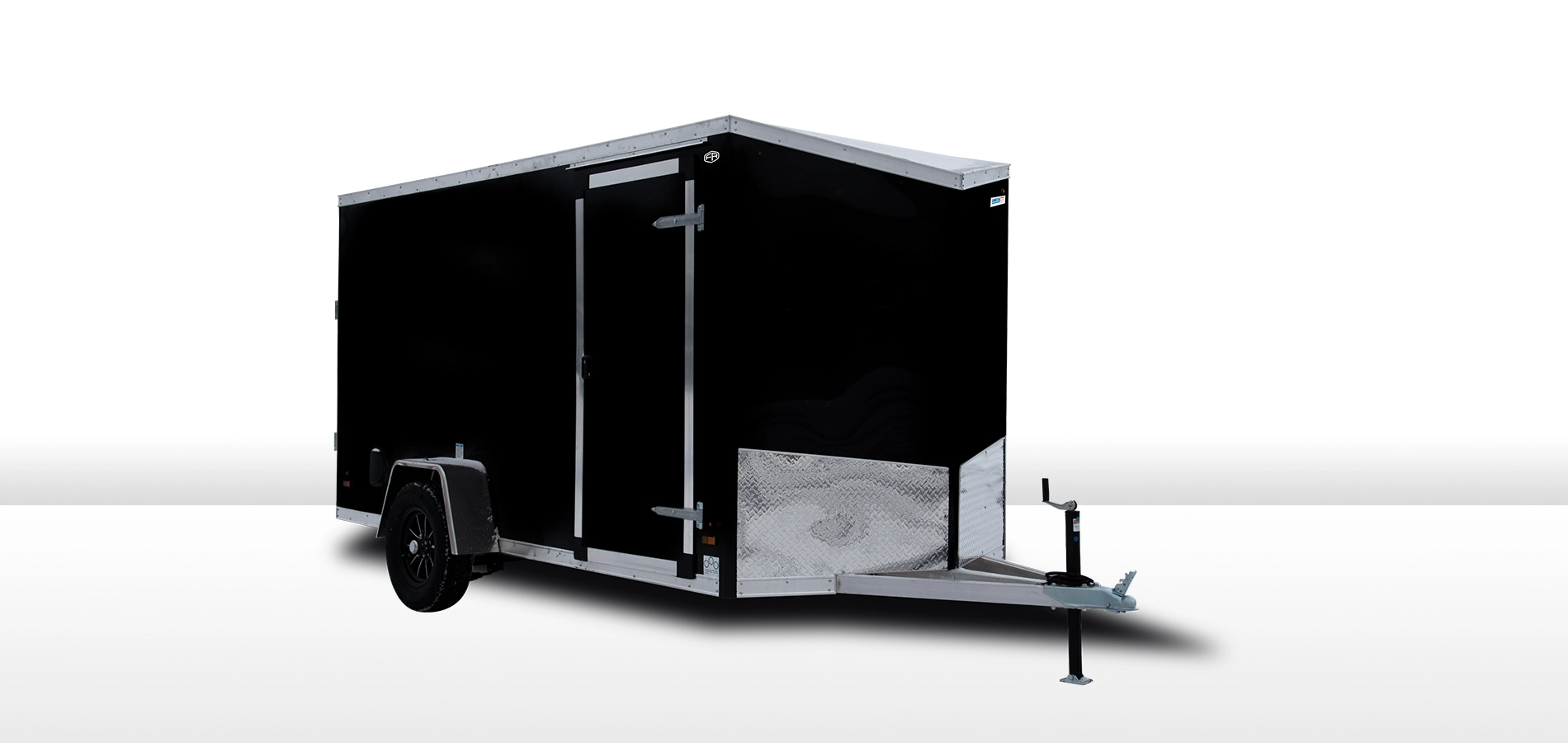

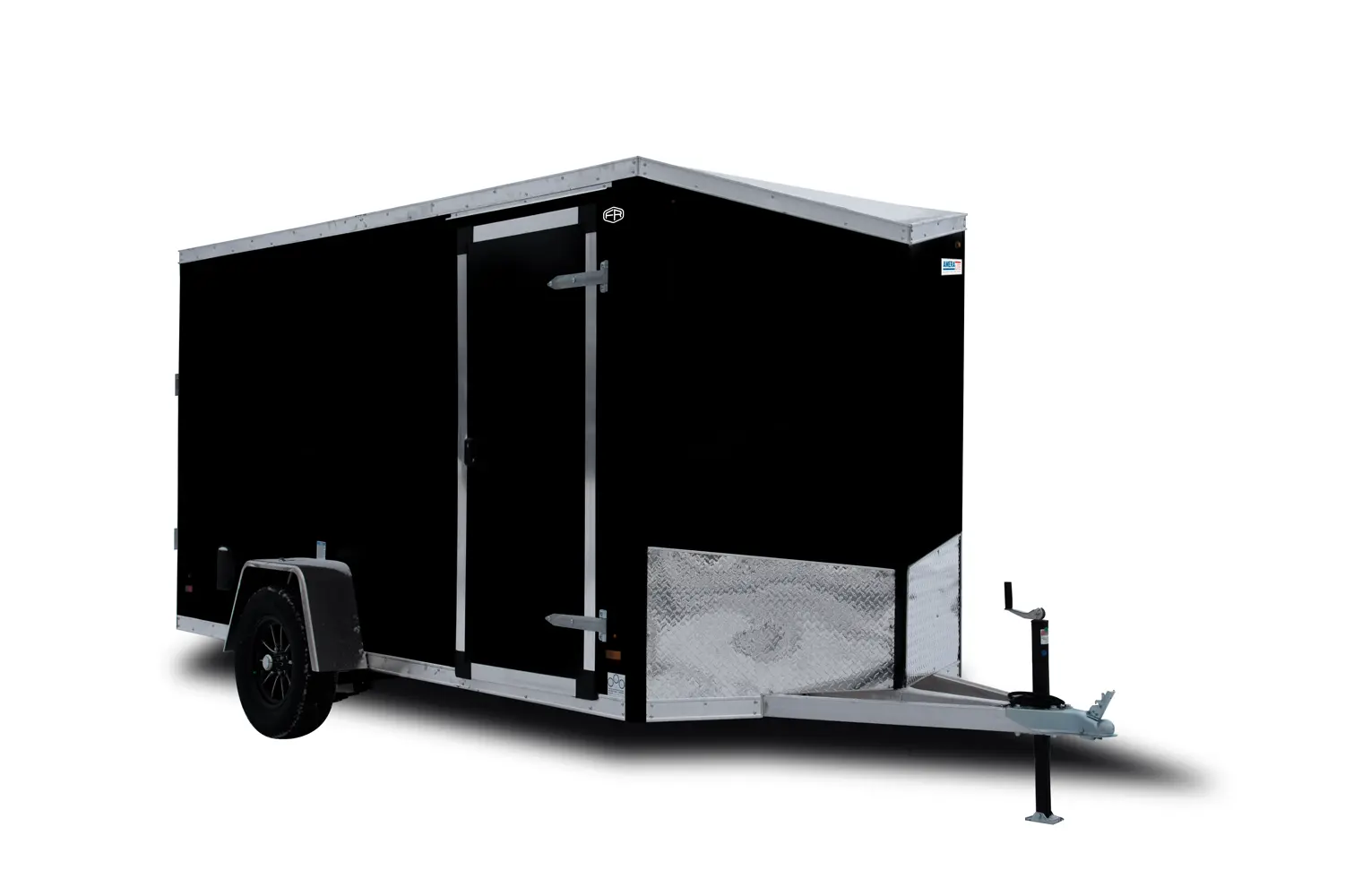

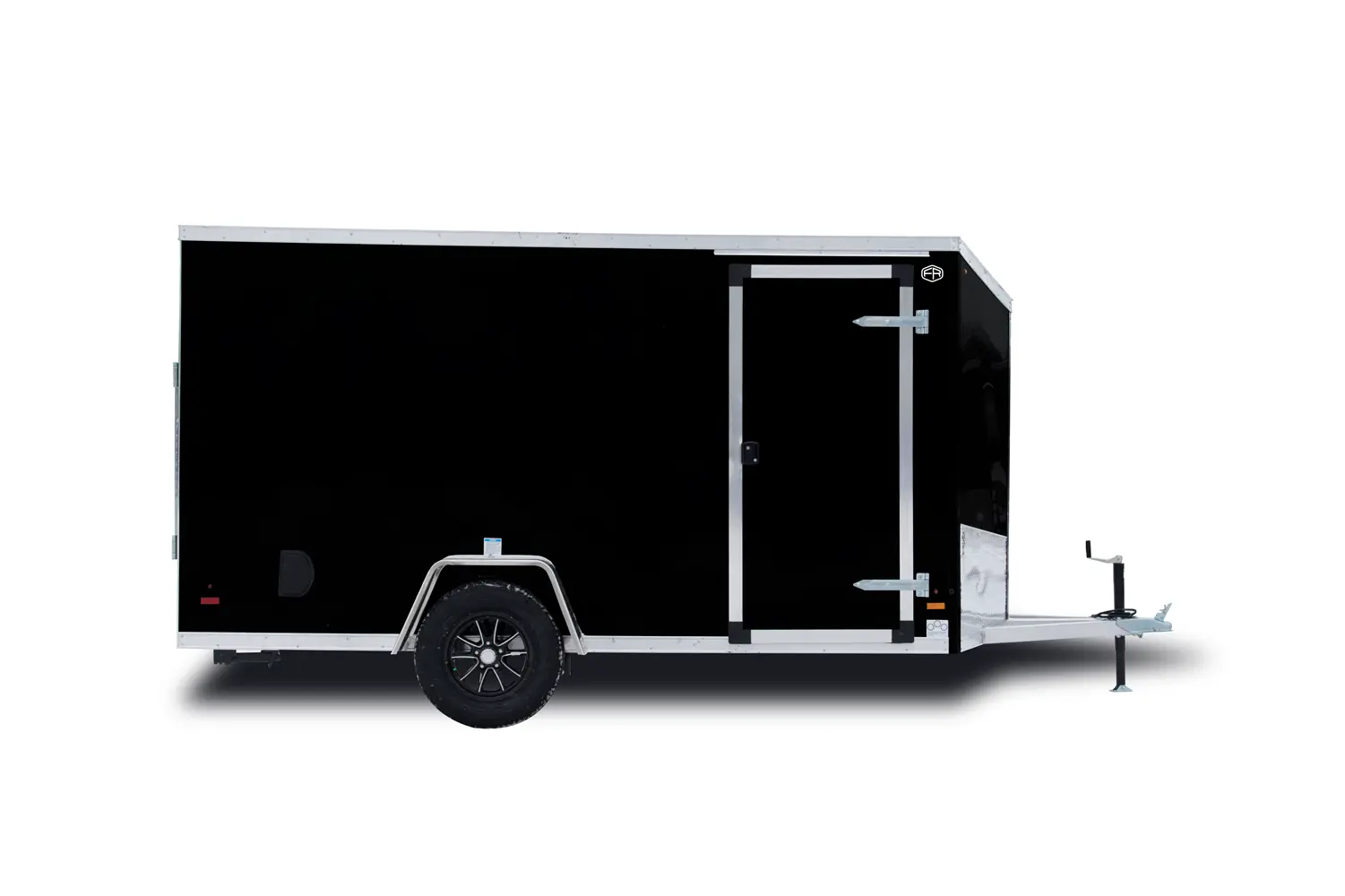

AmeraLite Peak Aluminum All-Purpose Trailers
The aluminum, fully enclosed AmeraLite Peak has what you need in a hardworking lightweight, economical general cargo workhorse.
Whether you’re moving boxes, hauling furniture or other cargo, ATVs, motorcycles, dirt bikes or even a golf cart, it has all the strength, rust and corrosion resistance and durability you expect from AmeraLite™ and can be configured to suit your needs and typical usage.
Available In standard sizes for 5' x 8' to 8.5' x 32' The Peak features an aluminum tubular frame, integrated tongue and frame design - unique in the industry for a stronger, more durable hauler - makes it easier and smoother to drive on too. The ramp’s all aluminum hinges are welded onto the frame, not just bolted on. Resists rusting which reduces the need for maintenance and smooth, hassle free raising and lowering.

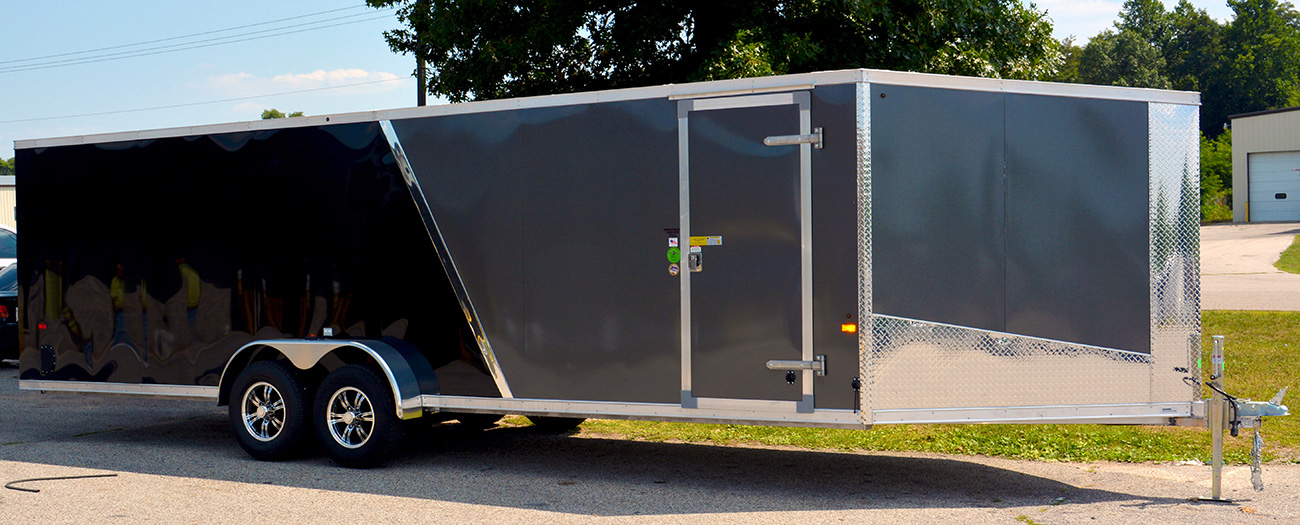

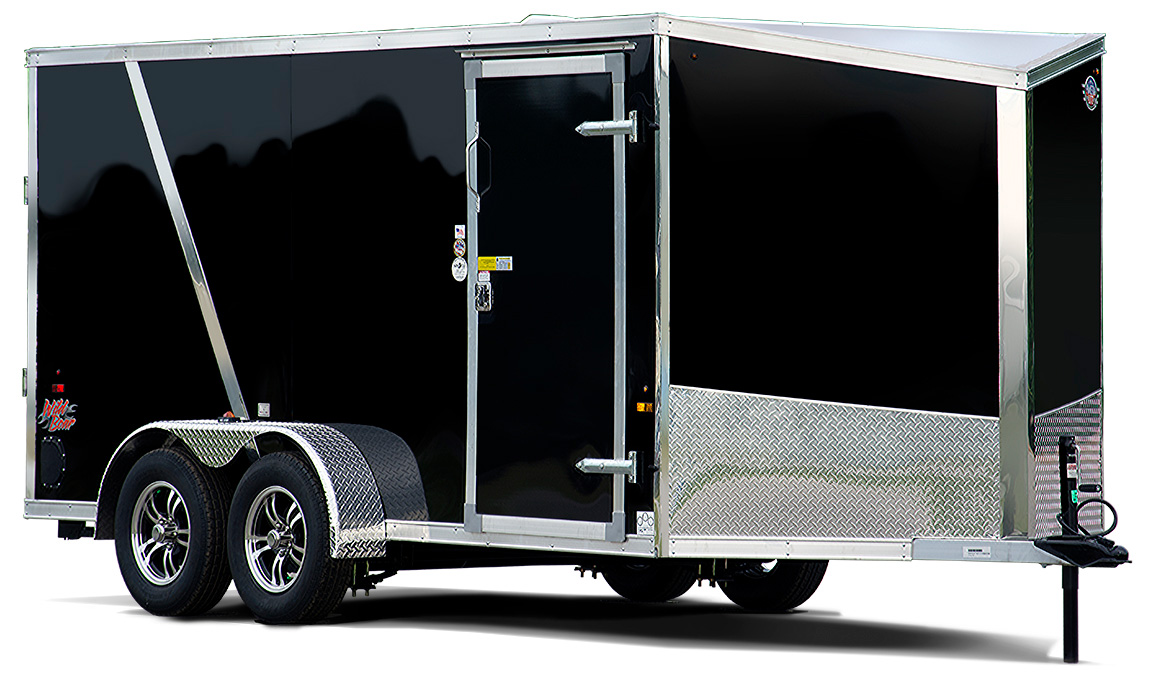

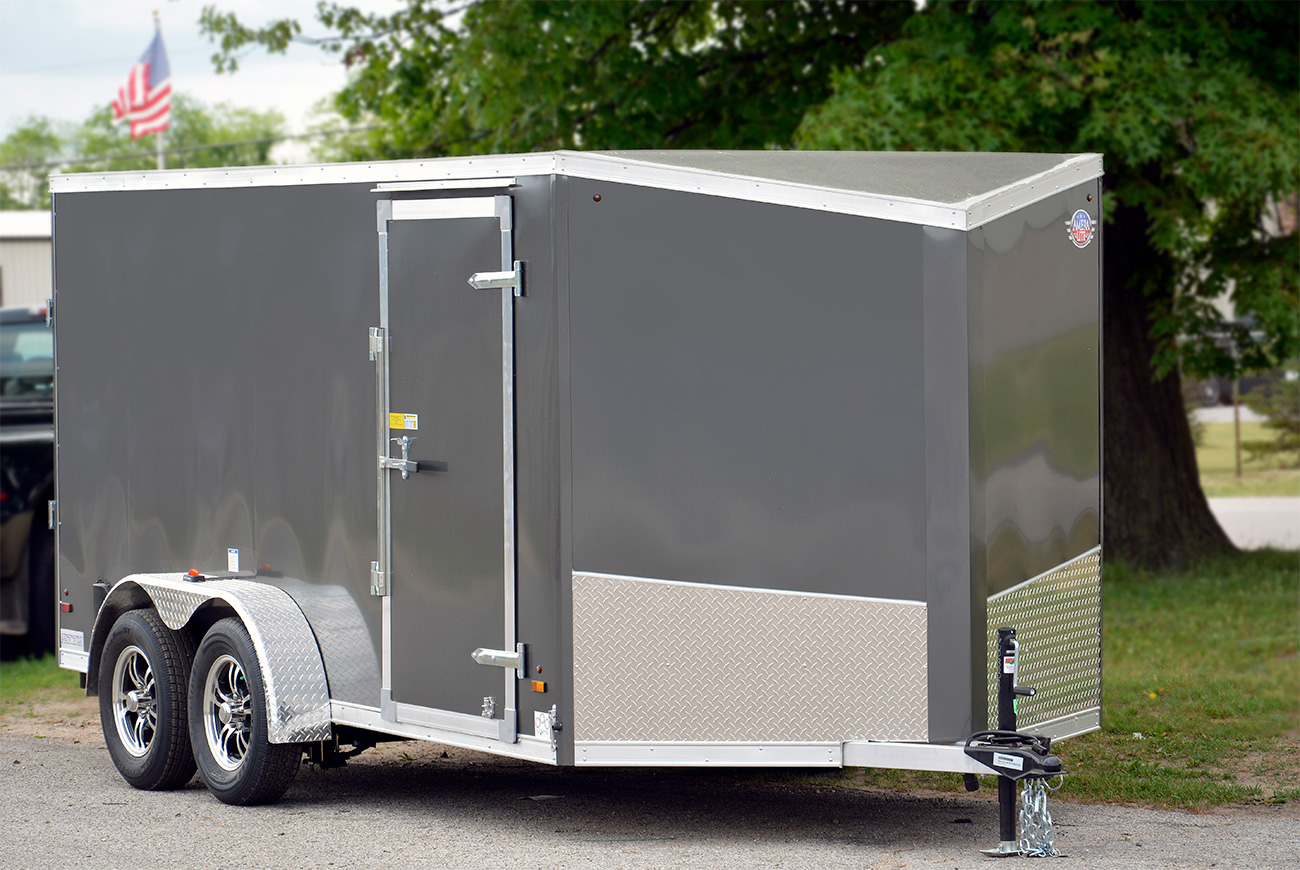

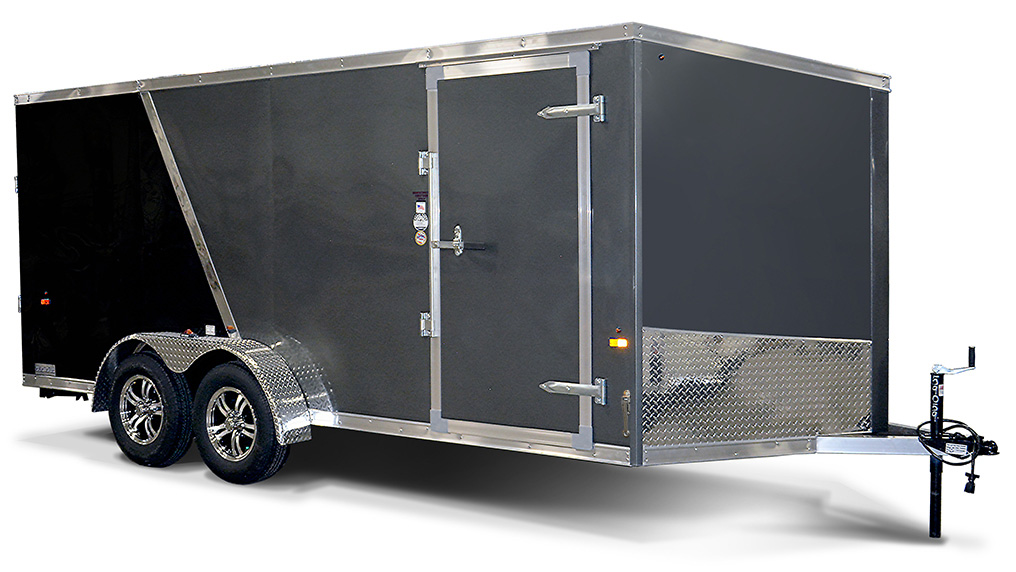

The slant front V nose makes the unit much more aerodynamic to assist in fuel economy.
-
- 1,000 lb. Ramp Door
- 4) 5,000 lb. Floor D-Rings
- 6) 1,200 lb. Wall D-Rings
- Rear Fold-Down Stabilizer Jacks

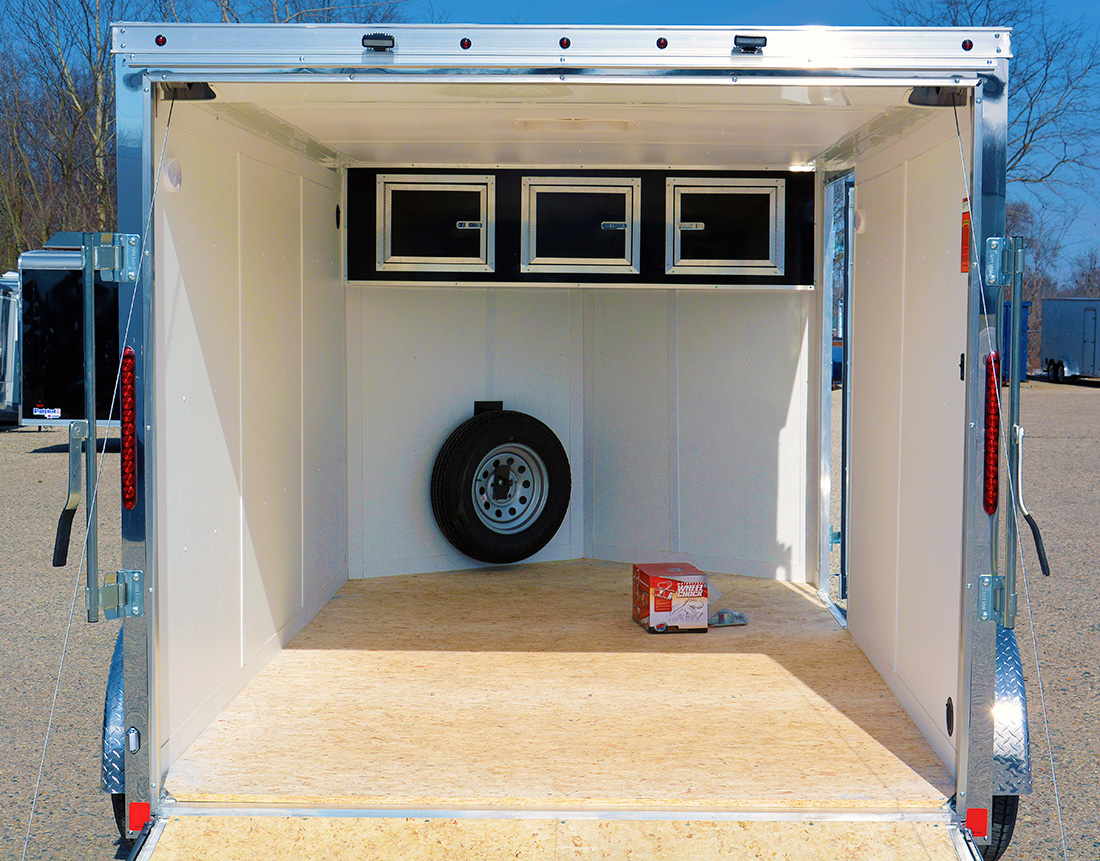

- Interior Mount for Spare Tire Shipped Loose
- ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
-
- 6" Extra Height Including Rear Door
- 6" Extra Height to Side Door
- 2,000 lb. Ramp Door
- Rear Fold-Down Stabilizer Jacks
- 4) 5,000 lb. Floor D-Rings
- 6) Wall D-Rings
- 1) Interior Mount for Spare Tire Shipped Loose
- ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
- 55" Bar Lock on Side Door
-
- 12" Extra Height Including Rear Door
- 6" Extra Height to Side Door
- 2,000 lb. Ramp Door
- Rear Fold-Down Stabilizer Jacks
- 4) 5,000 lb. Floor D-Rings
- 6) Wall D-Rings
- 1) Interior Mount for Spare Tire Shipped Loose
- ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
- 55" Bar Lock on Side Door
-
- Available with Spread Torsion Axles and Drop Skirting only
- 8.5' Wide Tandem Axle Trailer Models Only
- Not Available on Trailers Less than 20' Long
- Flip-up Door Centered Over Axles
- Includes Fender Attached to Door
- Removable Wheel Well
- Eberhard Recessed Door Latch
- Gas Shocks on Door
-
- Available with Torsion Axles Only (Does Not Include Torsion Upgrade)
- Includes Drop Skirting
- 2 Separate Fenders Around Tires
-
- Sides Dropped in Fender Area
- Can be Used with Standard or Spread Tandem Axles
-
- 2) 4' LED Lights with 1) Switch
- 2) 110 Volt Interior Recepts
- 30 Amp Service Panel
- 30 Amp Marine Plug
- 25' Long Cord for 30 Amp Marine Plug
-
- 4) 4' LED Lights
- 2) Switches for 4' Lights
- 4) 110 Volt Interior Recepts
- 30 Amp Service Panel
- 30 Amp Marine Plug
- 25' Long Cord for 30 Amp Marine Plug
-
- 4) 4' LED Lights
- 2) Switches for 4' Lights
- 4) 110 Volt Interior Recepts
- 50 Amp Service Panel
- 50 Amp Marine Plug
- 25' Long Cord for 50 Amp Marine Plug
-
- Black Trim
- Black Stoneguard
- Black Fenders
- Black Aluminum Rims
- Black Bar Locks and Hinges
- Black Screws on Trim and Stoneguard
- Screwless Glued Seams (No S-Lock)
-
- 12" High ATP Interior Kickplate over top of 3/8" Drymax
-
- 9" Deep
- Color Matched Aluminum Skin
- 2) LED Backup Lights under Spoiler with 1) Switch
- Double Doors- Reduces Opening By 6"
- Does not Affect Ramp Door Opening Height
-

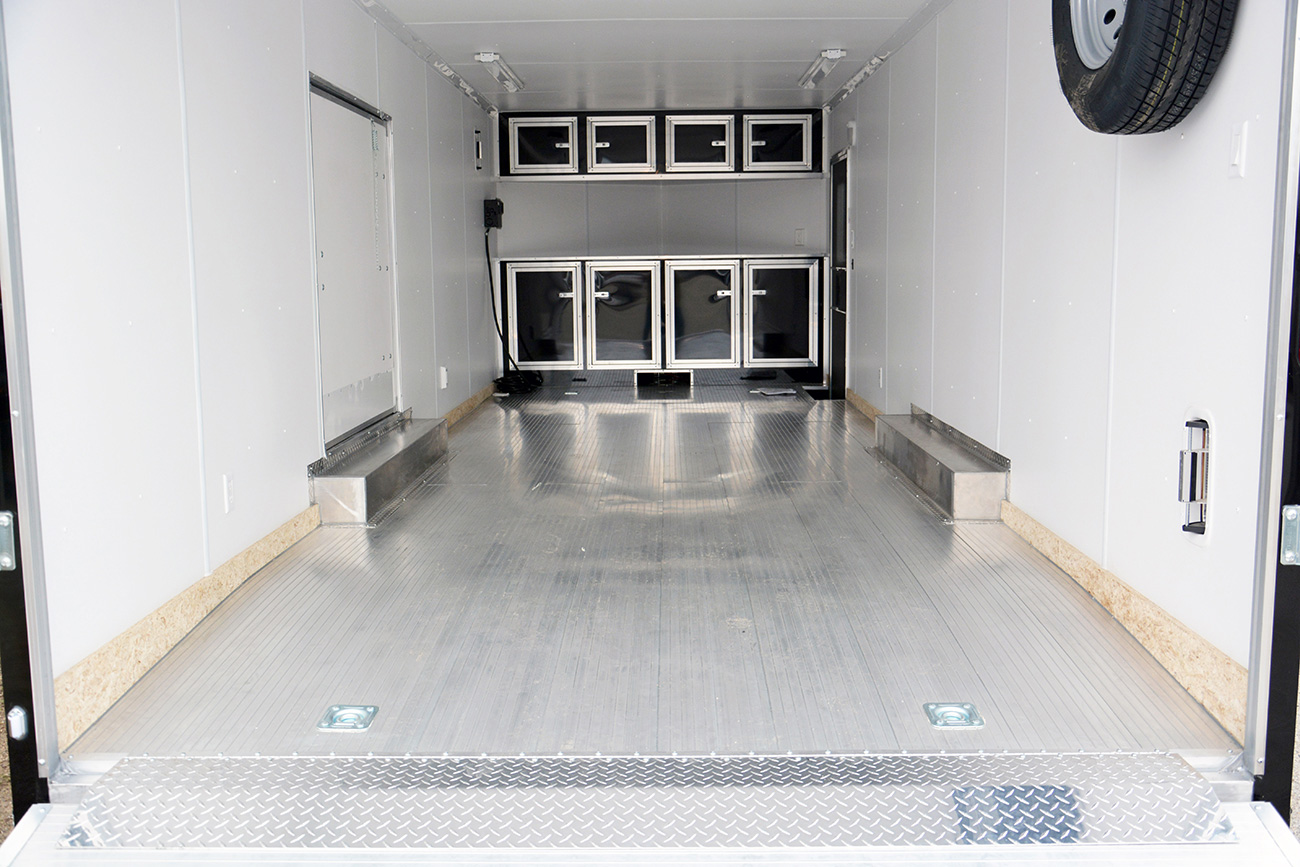

- DeckTred Flooring Panels
- Available in Black, Charcoal, Light Gray, Blue and Red
- Available in Solid Colors or Runners
- DeckTred is the ultimate solution against snowmobile studs. It helps preserve your floor for the life of your trailer.
Specifications
| ATTX58SA | ATTX510SA | ATTX68SA | ATTX610SA | ATTX612SA | ATTX614SA | ATTX610TA2 | ATTX612TA2 | ATTX614TA2 | ATTX710SAE | ATTX712SAE | ATTX714SAE | ATTX710TA2 | ATTX712TA2 | ATTX714TA2 | ATTX716TA2 | ATTX718TA2 | ATTX720TA2 | ATTX8516TA2 | ATTX8518TA2 | ATTX8520TA2 | ATTX8522TA2 | ATTX8524TA2 | ATTX8516TA3 | ATTX8518TA3 | ATTX8520TA3 | ATTX8522TA3 | ATTX8524TA3 | ATTX8526TA3 | ATTX8528TA3 | ATTX8530TA3 | ATTX8532TA3 | ATTX8516TA4 | ATTX8518TA4 | ATTX8520TA4 | ATTX8522TA4 | ATTX8524TA4 | ATTX8526TA4 | ATTX8528TA4 | ATTX8530TA4 | ATTX8532TA4 | |
| GVWR: | 3500 lb. | 3500 lb. | 3500 lb. | 3500 lb. | 3500 lb. | 3500 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 3500 lb. | 3500 lb. | 3500 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 7000 lb. | 10400 lb. | 10400 lb. | 10400 lb. | 10400 lb. | 10400 lb. | 10400 lb. | 10400 lb. | 10400 lb. | 10400 lb. | 12000 lb. | 12000 lb. | 12000 lb. | 12000 lb. | 12000 lb. | 12000 lb. | 12000 lb. | 12000 lb. | 12000 lb. |
| Payload Capacity: | 2730 | 2650 | 2440 | 2370 | 2300 | 2230 | 5430 | 5550 | 5430 | 2080 | 2000 | 1920 | 5440 | 5320 | 5200 | 5080 | 4960 | 4840 | 4450 | 4300 | 3880 | 4000 | 3510 | 7525 | 7400 | 7250 | 7100 | 6950 | 6600 | 6450 | 6300 | 6150 | 8800 | 8650 | 8500 | 8350 | 8200 | 8050 | 7900 | 7750 | 7600 |
| Exterior Length: | 12' 1" | 14' 1" | 12' 1" | 14' 1" | 15' 10" | 17' 10" | 13' 10" | 15' 10" | 17' 10" | 13' 10" | 15' 10" | 17' 10" | 13' 10" | 15' 10" | 17' 10" | 19' 10" | 21' 10" | 23' 10" | 21' 7" | 23' 7" | 25' 7" | 27' 7" | 29' 7" | 21' 7" | 23' 7" | 25' 7" | 27' 7" | 29' 7" | 31' 7" | 33' 7" | 35' 7" | 37' 7" | 21' 7" | 23' 7" | 25' 7" | 27' 7" | 29' 7" | 31' 7" | 33' 7" | 35' 7" | 37' 7" |
| Exterior Width: | 6' 6" | 6' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 7' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 6' 6" | 6' 6" | 7' 7" | 7' 7" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 7' 9" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" | 8' 4" |
| Interior Length: | 8' 0" | 10' 0" | 6' 0" | 10' 0" | 12' 0" | 14' 0" | 10' 0" | 12' 0" | 14' 0" | 10' 0" | 12' 0" | 14' 0" | 10' 0" | 12' 0" | 14' 0" | 16' 0" | 18' 0" | 20' 0" | 16' 0" | 18' 0" | 20' 0" | 22' 0" | 24' 0" | 16' 0" | 18' 0" | 20' 0" | 22' 0" | 24' 0" | 26' 0" | 28' 0" | 30' 0" | 32' 0" | 16' 0" | 18' 0" | 20' 0" | 22' 0" | 24' 0" | 26' 0" | 28' 0" | 30' 0" | 32' 0" |
| Interior Width: | 4' 8" | 4' 8" | 5' 8" | 5' 8" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 5' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 6' 9" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" | 8' 0" |
| Interior Height: | 4' 11" | 4' 11" | 5' 11" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 0" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" | 6' 6" |
| Rear Door Type: | Single | Single | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Double | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp | Ramp |
| Rear Door Width: | 4' 6" | 4' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" | 7' 10" |
| Rear Door Height: | 4' 7" | 4' 7" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 5' 6" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" | 6' 5" |
| Coupler Size: | 2" | 2" | 2" | 2" | 2" | 2" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" | 2 5/16" |
| Curb Weight: | 770 | 850 | 1060 | 1130 | 1200 | 1270 | 1570 | 1450 | 1570 | 1420 | 1500 | 1580 | 1560 | 1680 | 1800 | 1920 | 2040 | 2160 | 2550 | 2700 | 3120 | 3000 | 3490 | 2850 | 3000 | 3150 | 3300 | 3450 | 3800 | 3950 | 4100 | 4250 | 3200 | 3350 | 3500 | 3650 | 3800 | 3950 | 4100 | 4250 | 4400 |
| Hitch Weight: | 77 | 85 | 106 | 113 | 120 | 127 | 157 | 145 | 157 | 142 | 150 | 158 | 156 | 168 | 180 | 192 | 204 | 216 | 255 | 270 | 312 | 300 | 349 | 285 | 300 | 315 | 330 | 345 | 380 | 395 | 410 | 425 | 320 | 335 | 350 | 365 | 380 | 395 | 410 | 425 | 440 |
| Hitch Height: | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 20" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" | 16" |
| Platform Height: | 19 | 19 | 19 | 19 | 19 | 19 | 16 | 16 | 16 | 18 | 18 | 18 | 18 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| Axle: | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 1-3,500 | 1-3,500 | 1-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-3,500 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-5,200 | 2-6,000 | 2-6,000 | 2-6,000 | 2-6,000 | 2-6,000 | 2-6,000 | 2-6,000 | 2-6,000 | 2-6,000 |
| Suspension: | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD | TBD |
| Brakes: | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric | Electric |
| Tires: | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST225/75R15/D | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST205/75R15/C | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E | ST235/80R16/E |
| Wheels: | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 6 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 5 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt | 8 Bolt |
| Main Frame: | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 3" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube | 5" Tube |
| Floor: | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor | 3/4" Engineered Floor |
| Walls: | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls | 3/8" Engineered Walls |
