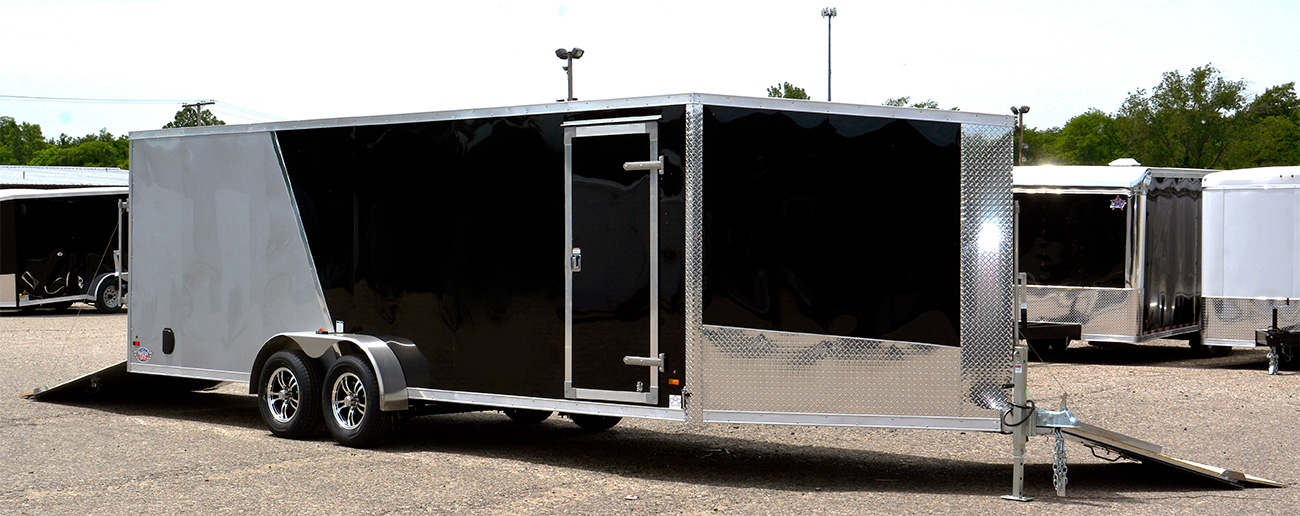

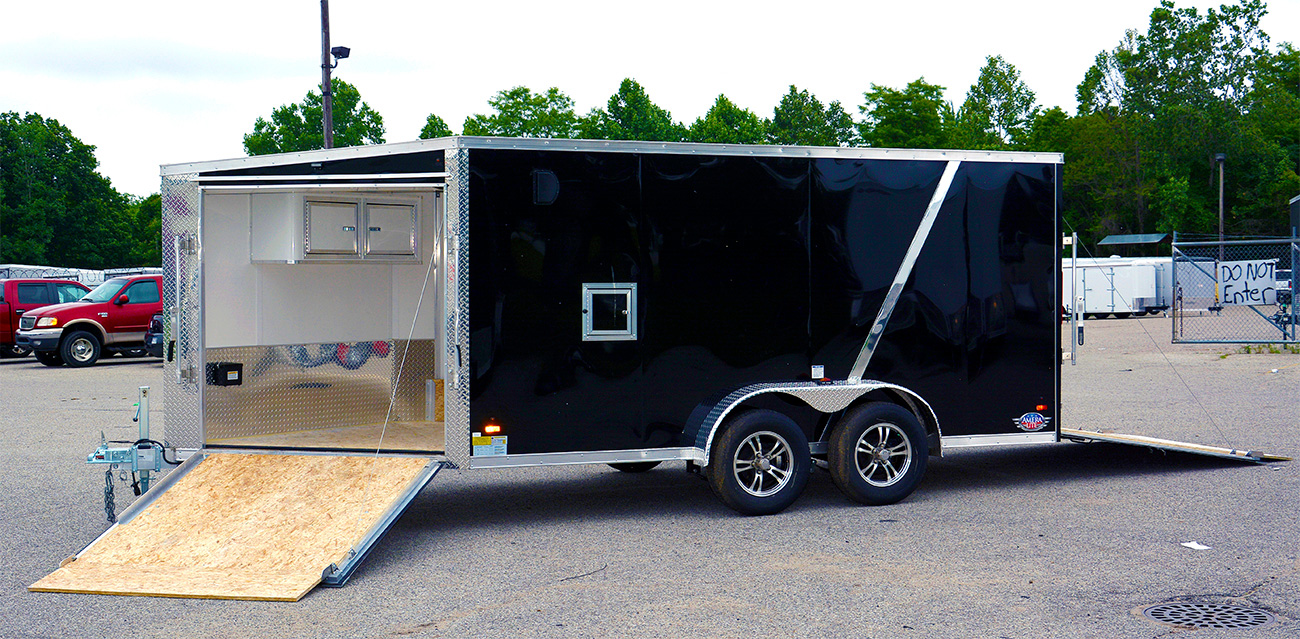

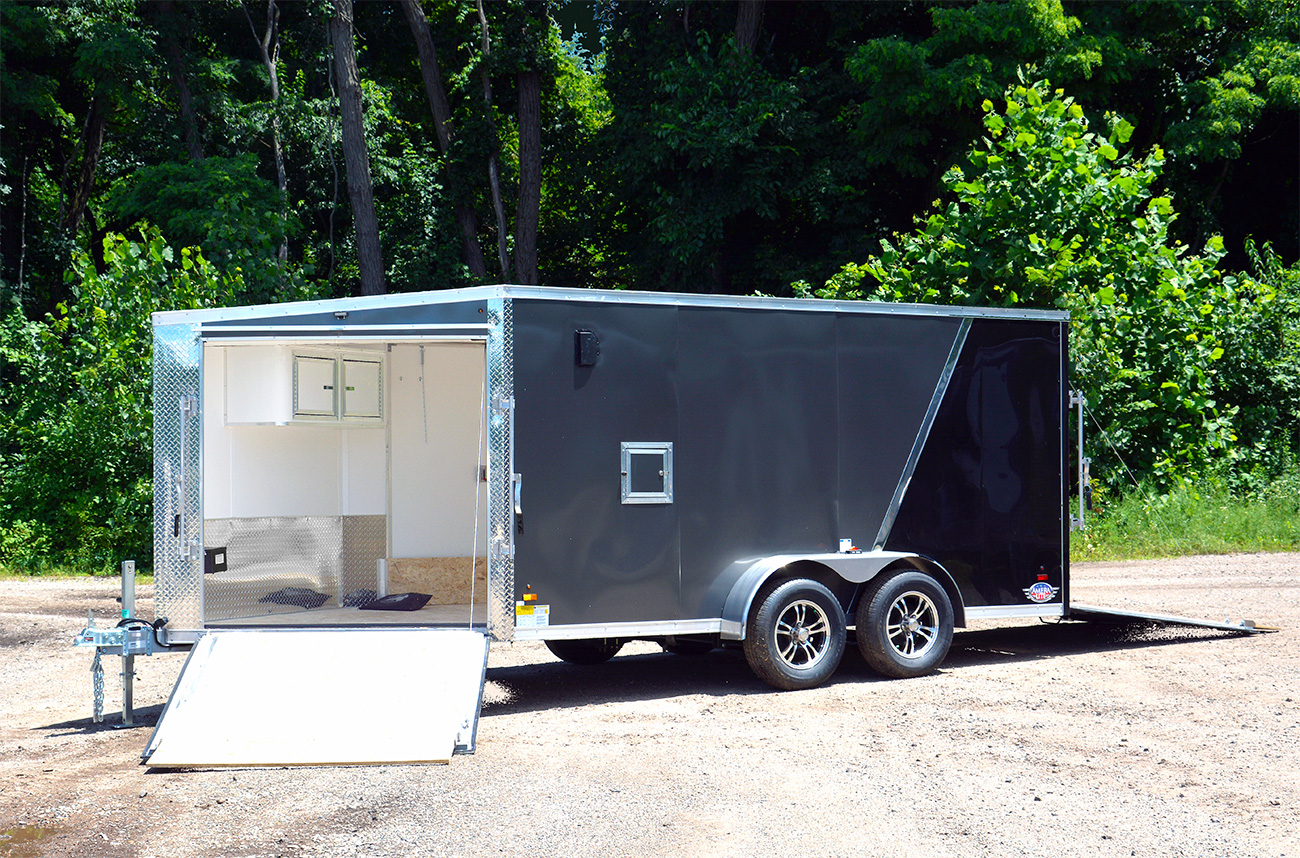

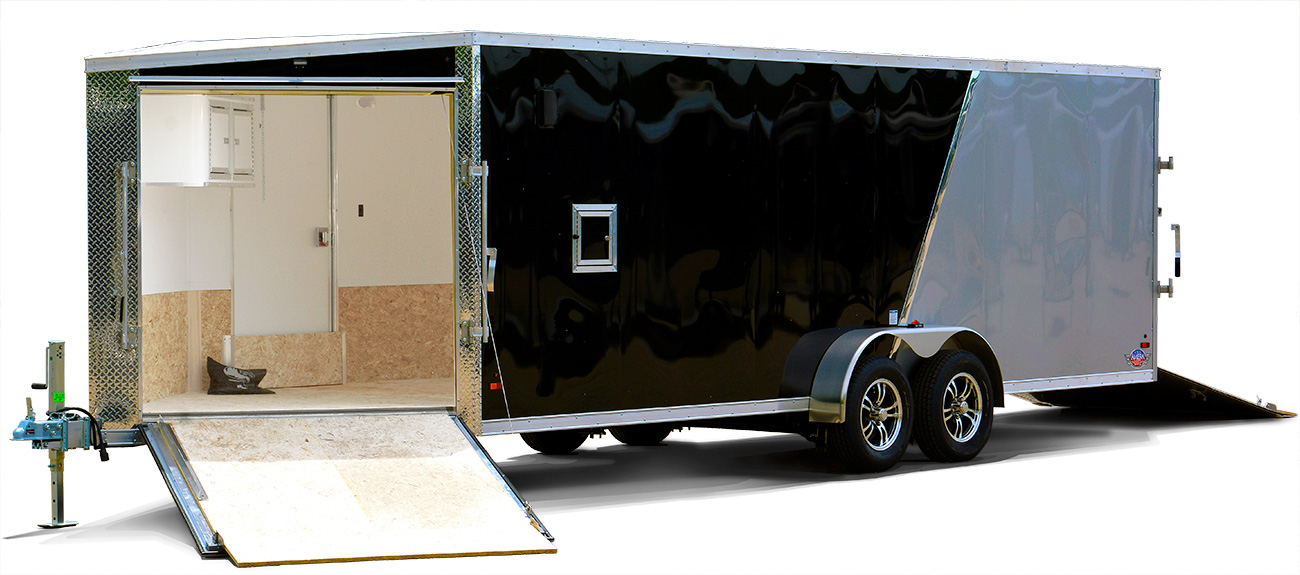

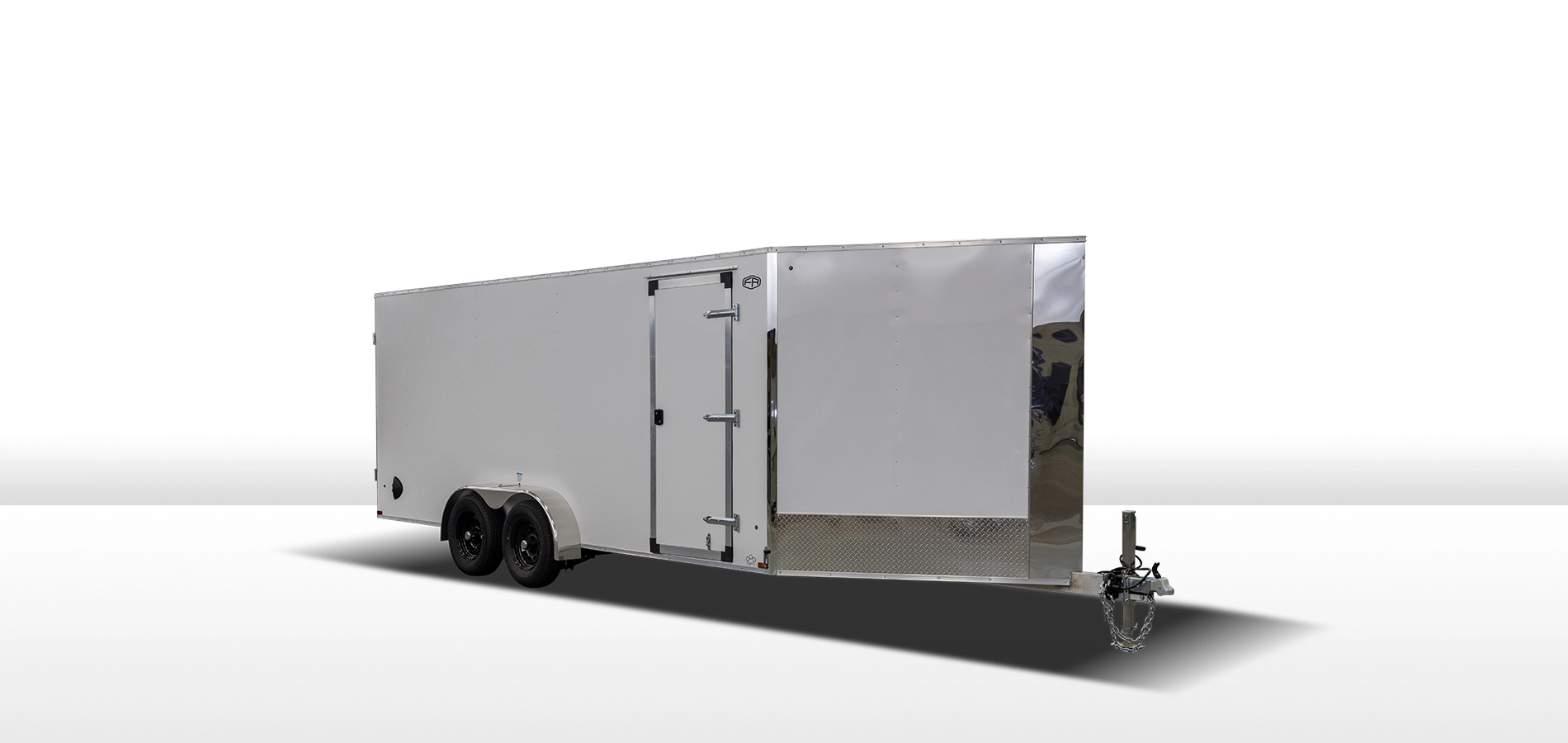

AmeraLite Arctic Aluminum Trailers

Serious sled heads; haul your sleds and gear with this all aluminum, fully enclosed sled trailer and make tracks for winter adventure. When you arrive, drive right off and hit those trails saving time and fuss with the hassle free drive on drive off ramp feature. Packed with in-demand, performance features – standard equipment, the AmeraLite™ Arctic is rapidly gaining loyal fans around the US and Canada.

Make sure you're enjoying the season instead of struggling with the hassle and frustration of an inferior trailer. Choose AmeraLite. Available In standard sizes from 7' x 17' to 7' x 33'.

The fun doesn’t stop when the snow melts either – it’s just heating up. The Arctic is super versatile and makes the perfect multi use motorsport trailer. Plus, if you add extra height you can haul taller vehicles like UTVs. Happy Trails!

VIEW THE TOP 10 REASONS TO BUY AMERALITE

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:ADXST717SAEADXST717TA2ADXST719SAEADXST719TA2ADXST721TA2ADXST723TA2ADXST723TA3ADXST725TA2ADXST725TA3ADXST727TA2ADXST727TA3ADXST729TA2ADXST729TA3ADXST731TA3ADXST733TA3
GVWR:3500 lb.7000 lb.3500 lb.7000 lb.7000 lb.7000 lb.10400 lb.7000 lb.10400 lb.7000 lb.10400 lb.7000 lb.10400 lb.10400 lb.10400 lb.
Payload Capacity:1680 lb.4960 lb.1530 lb.4810 lb.4660 lb.4510 lb.7760 lb.4360 lb.7610 lb.3910 lb.7160 lb.3760 lb.7010 lb.6860 lb.6710 lb.
Exterior Length:18' 11"18' 11"20' 11"20' 11"22' 11"24' 11"24' 11"26' 11"26' 11"28' 11"28' 11"30' 11"30' 11"32' 11"34' 11"
Exterior Width:8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"
Exterior Height:7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"7' 6"
Interior Length:17' 0"17' 0"19' 0"19' 0"21' 0"23' 0"23' 0"25' 0"25' 0"27' 0"27' 0"29' 0"29' 0"31' 0"33' 0"
Interior Width:6' 7"6' 7"6' 7"6' 7"6' 7"6' 7"6' 7"6' 7"6' 7"6' 7"6' 7"6' 7"6' 7"6' 7"6' 7"
Interior Height:6' 0"6' 0"6' 0"6' 0"6' 0"6' 0"6' 0"6' 0"6' 0"6' 0"6' 0"6' 0"6' 0"6' 0"6' 0"
Rear Door Type:Ramprampramprampramprampramprampramprampramprampramprampramp
Rear Door Width:6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"
Rear Door Height:5' 11"5' 11"5' 11"5' 11"5' 11"5' 11"5' 11"5' 11"5' 11"5' 11"5' 11"5' 11"5' 11"5' 11"5' 11"
Coupler Size:2"2"2"2"2"2"2 5/16"2"2 5/16"2"2 5/16"2 5/16"2 5/16"2 5/16"2 5/16"
Curb Weight:1820 lb.2040 lb.1970 lb.2190 lb.2340 lb.2490 lb.2640 lb.2640 lb.2790 lb.3090 lb.3240 lb.3240 lb.3390 lb.3540 lb.3690 lb.
Hitch Weight:182 lb.204 lb.197 lb.219 lb.234 lb.249 lb.264 lb.264 lb.279 lb.309 lb.324 lb.324 lb.339 lb.354 lb.369 lb.
Hitch Height:16"16"16"16"16"16"16"16"16"16"16"16"20"20"20"
Platform Height:19"19"19"19"19"19"16"19"16"19"18"16"18"18"18"
Axle:1-3,5002-3,5001-3,5002-3,5002-3,5002-3,5002-5,2002-3,5002-5,2002-3,5002-5,2002-3,5002-5,2002-5,2002-5,200
Suspension:TBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBDTBD
Brakes:OptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptional
Tires:ST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/C
Wheels:5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt
Main Frame:3" Tube3" Tube3" Tube3" Tube3" Tube4" Tube4" Tube4" Tube4" Tube4" Tube4" Tube4" Tube4" Tube4" Tube4" Tube
Floor:3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor
Walls:3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls3/8" Engineered Walls

Features & Options

Print
  • All Aluminum Tube Frame Structure
  • Integrated Triple Tube Tongue Design
  • Flat Top Design

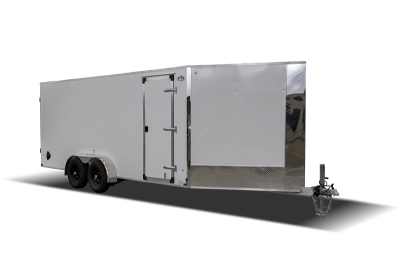

  • 5' Front Sloped Wedge

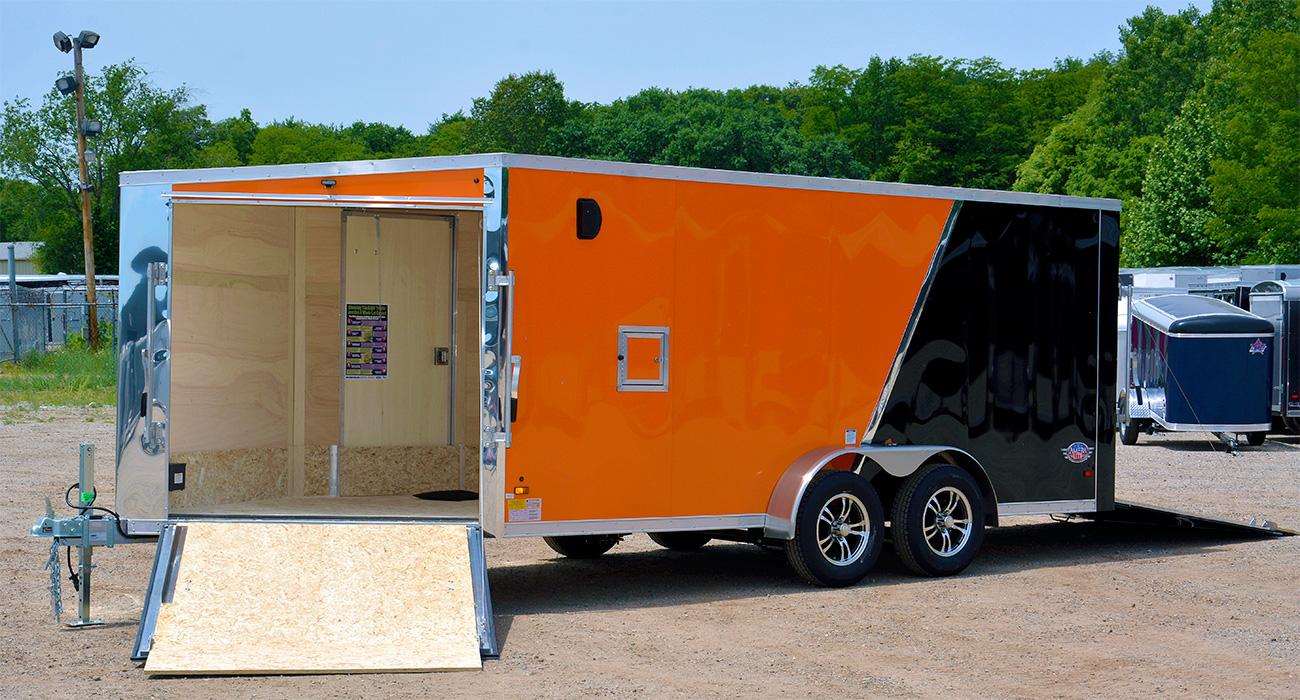

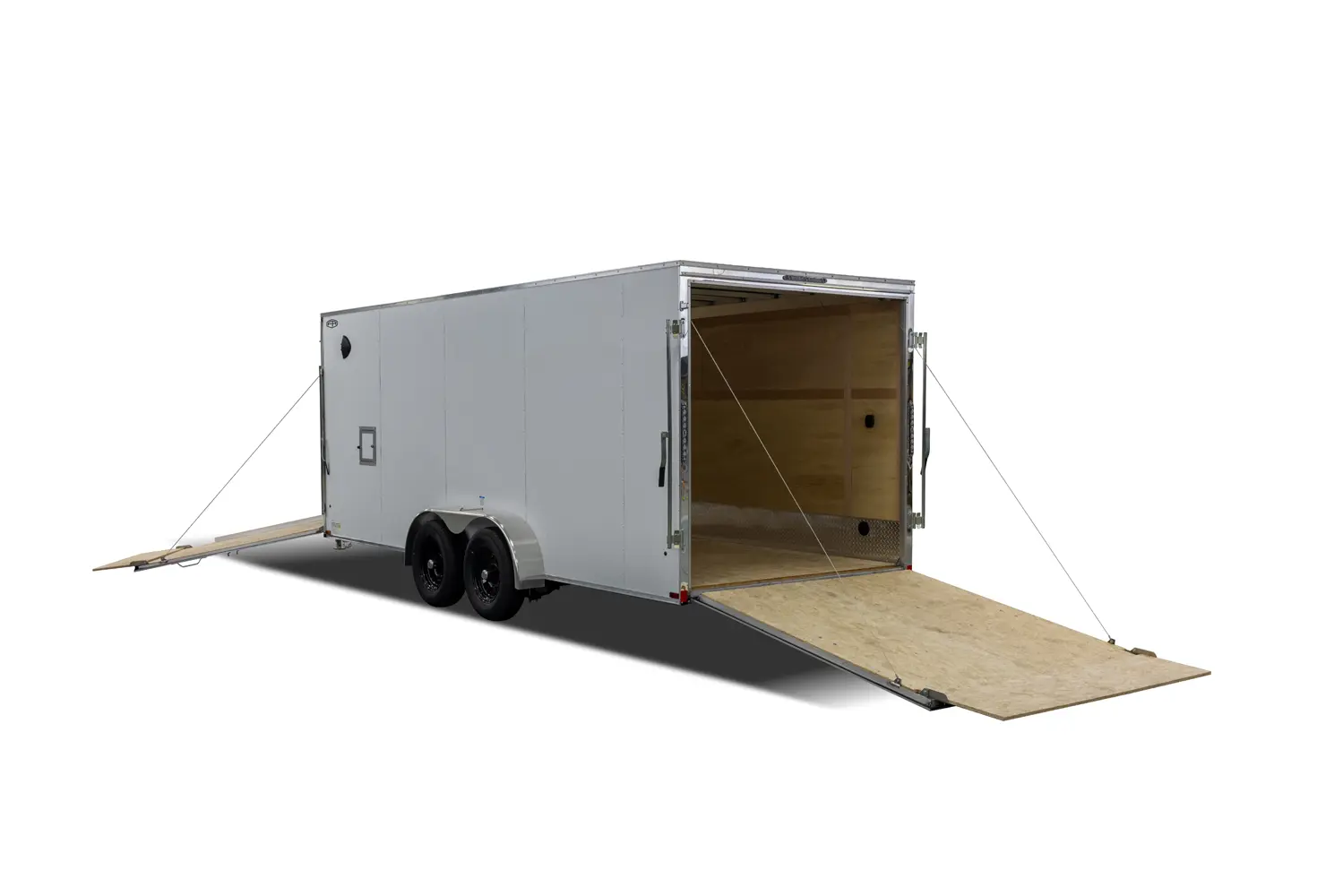

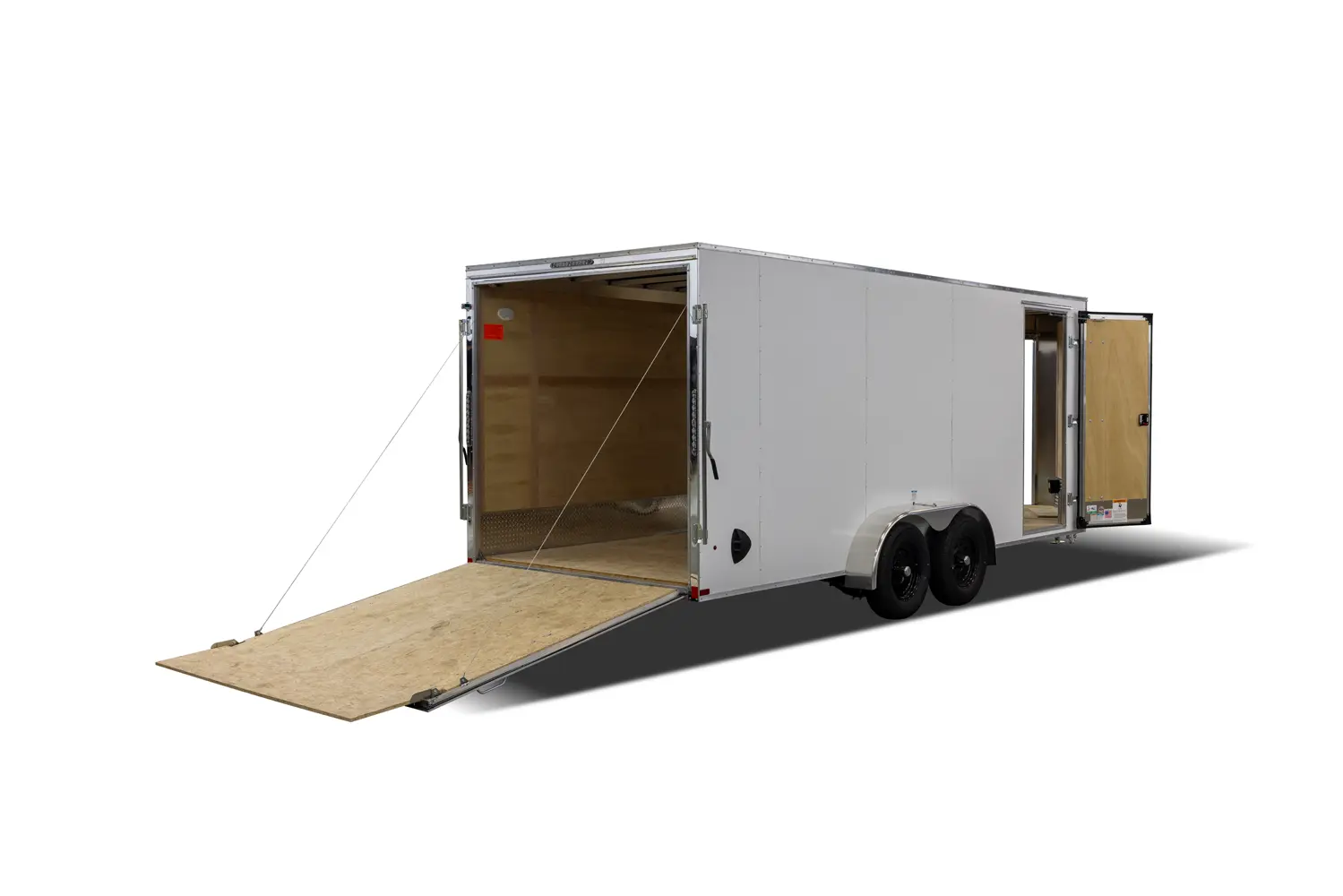

  • Rear Ramp Door with Flap

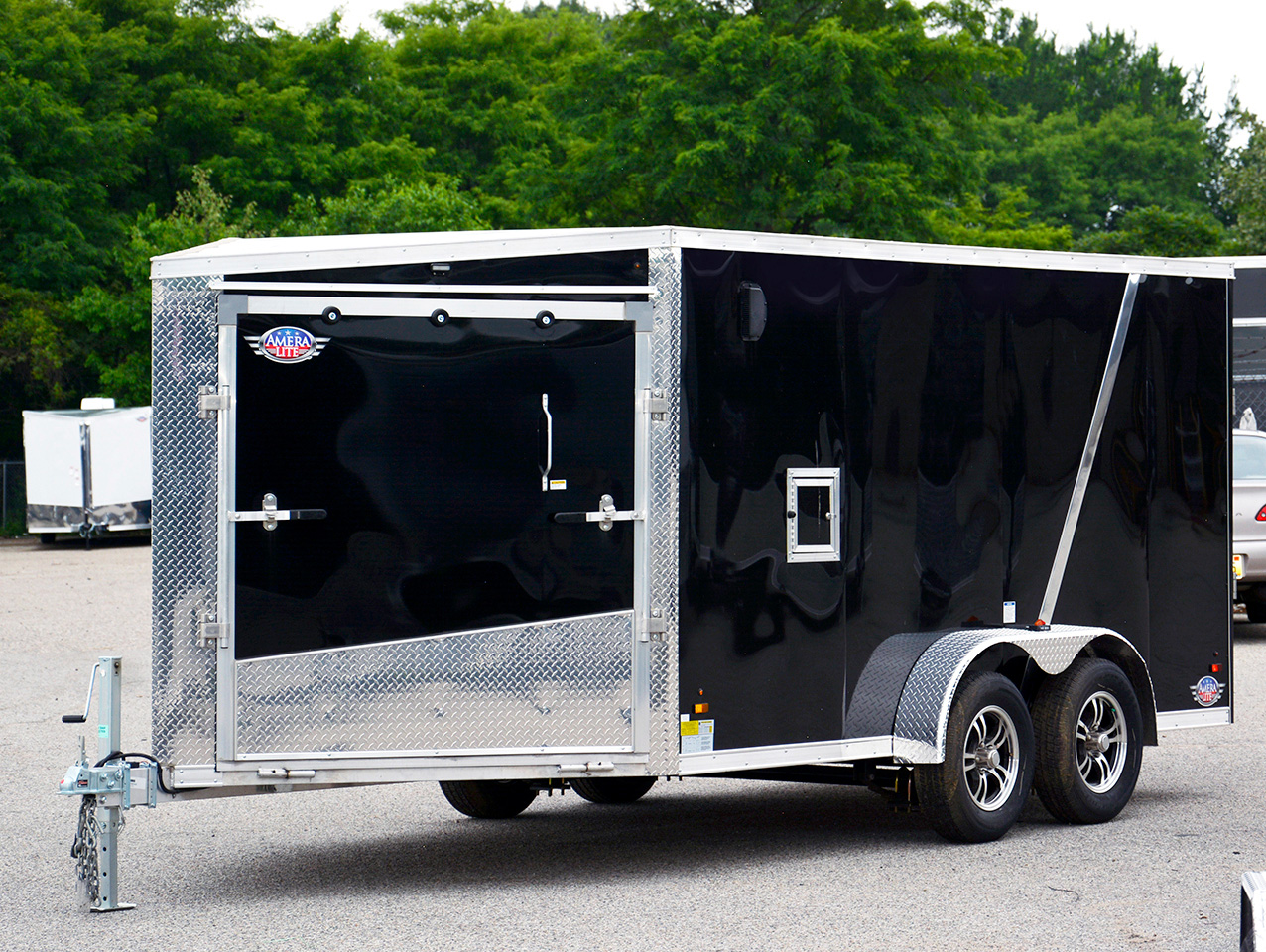

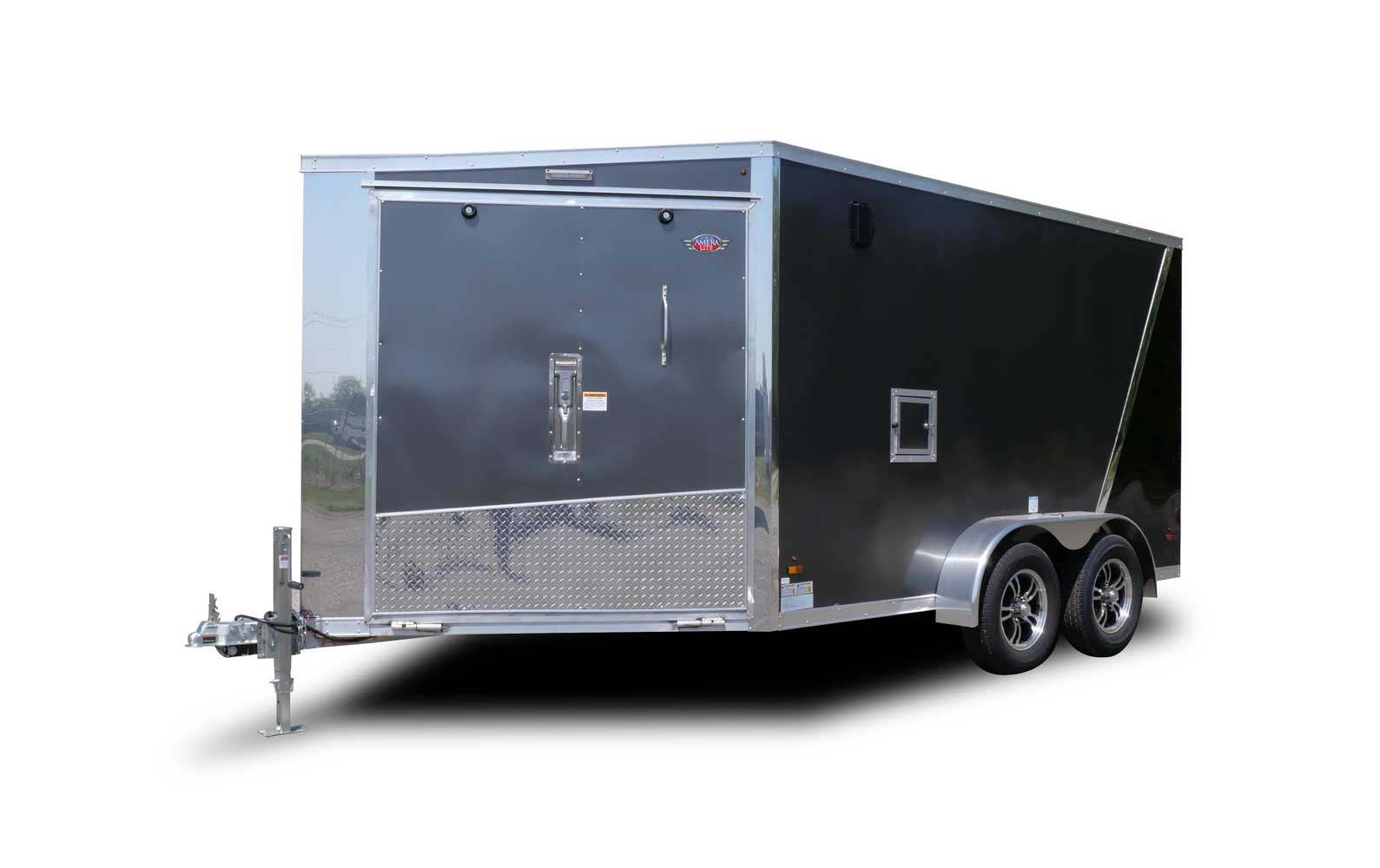

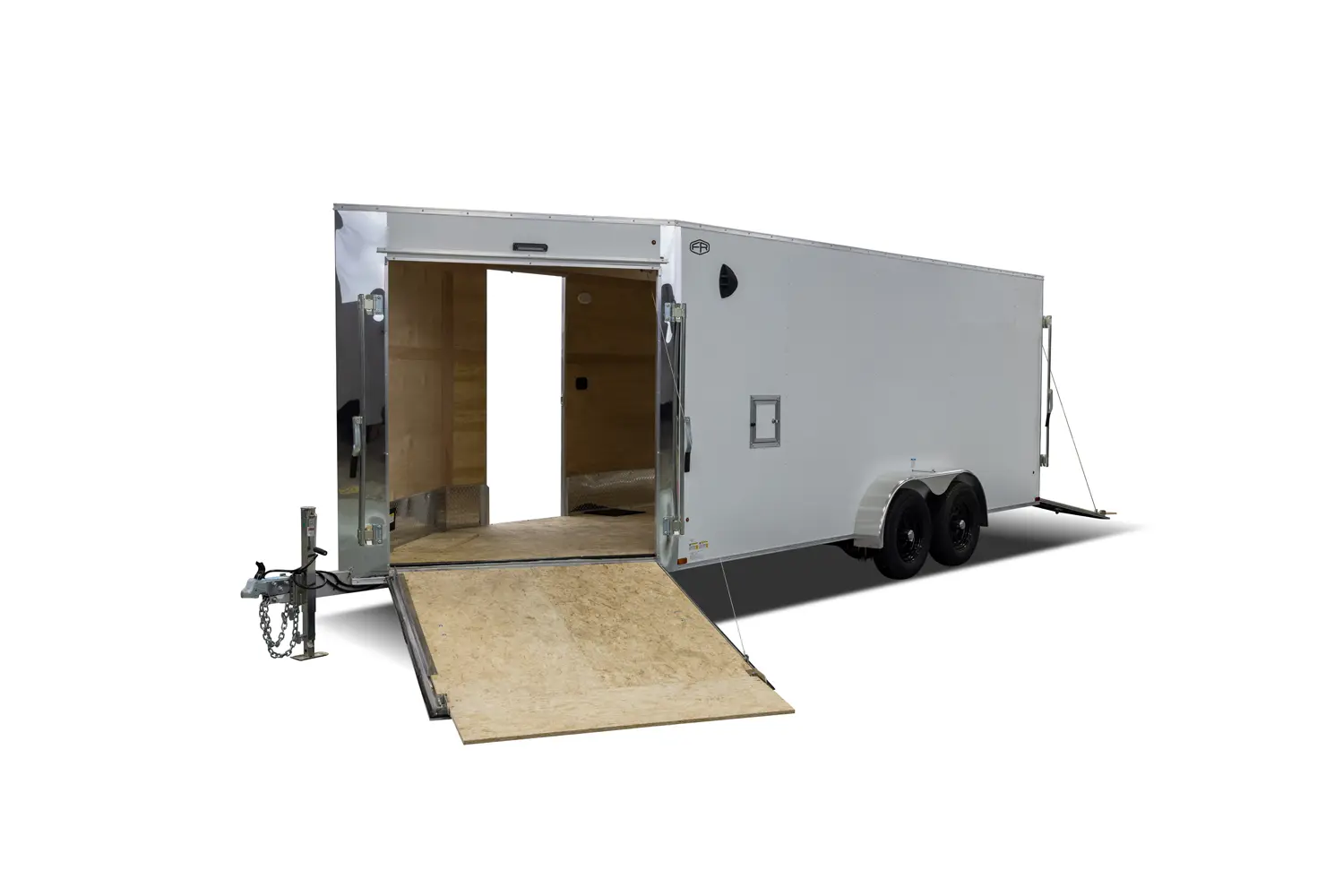

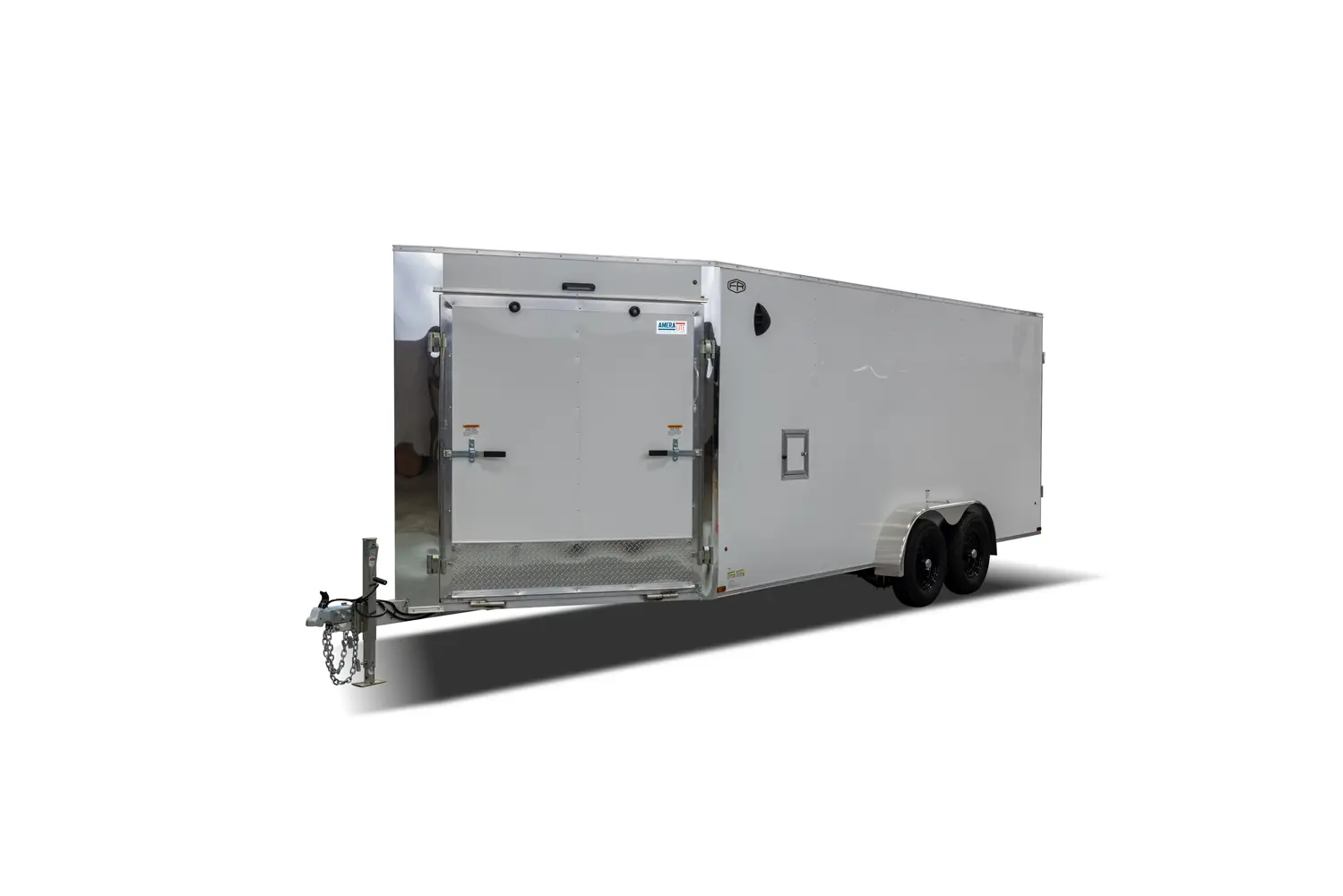

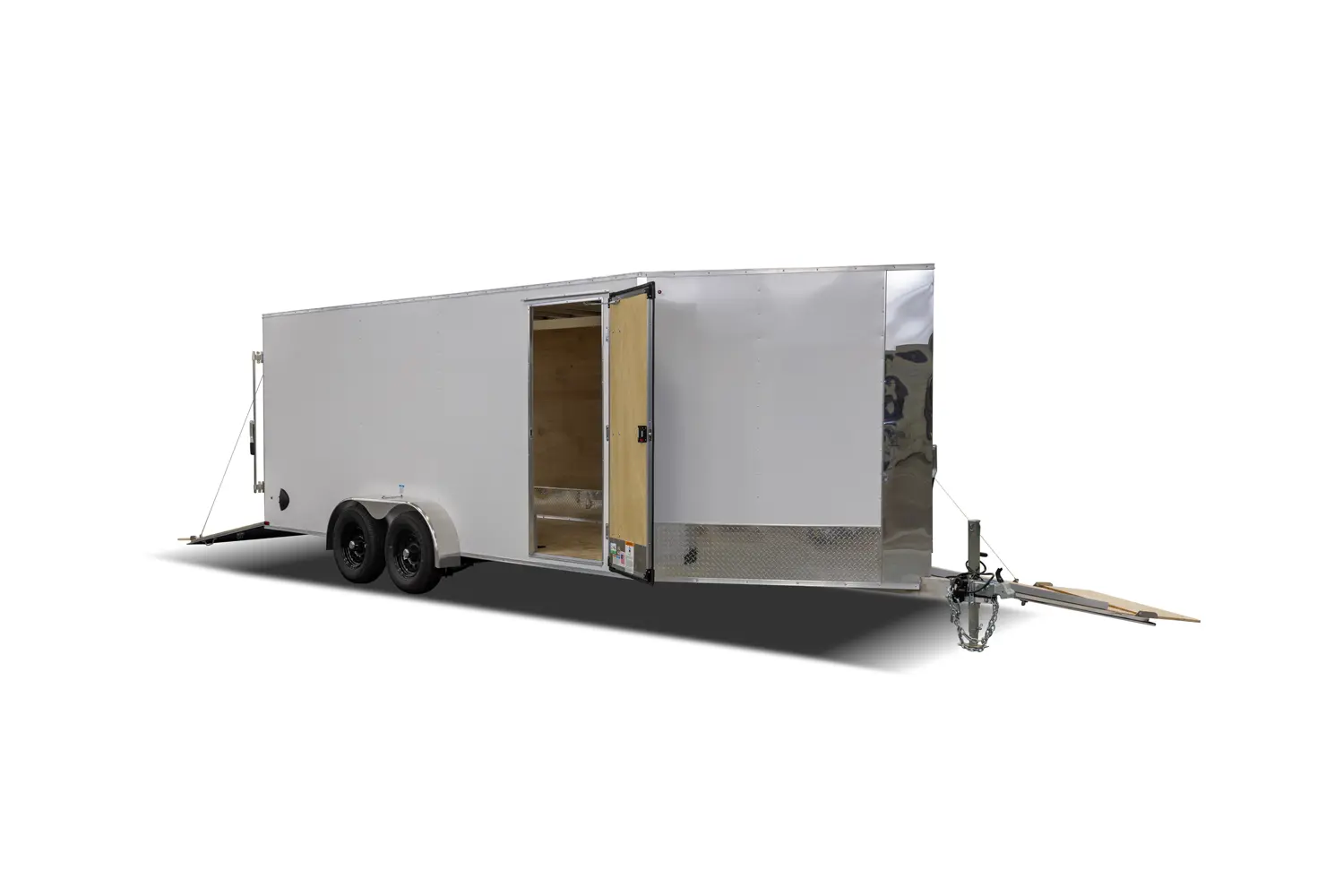

  • Front Wedge Ramp Door with Flap and Ski Guide
  • Spring Assist on Both Ramp Doors
  • Snow Hinge on Ramp Flaps (no Piano Hinge)
  • Wall Posts 16" on Center
  • Cross Members 24" on Center
  • Roof Bows 16″ on Center
  • 2" Coupler
  • Tongue Jack
  • 3500# Drop Spring Axles for SA and TA2
  • 5200# Drop Spring Axles for TA3
  • ST205/75R15 Radial Tires for SA and TA2
  • ST225/75R15 Radial Tires for TA3
  • Aluminum Wheels
  • One-Piece Aluminum Roof
  • Smooth Aluminum Exterior Fenders

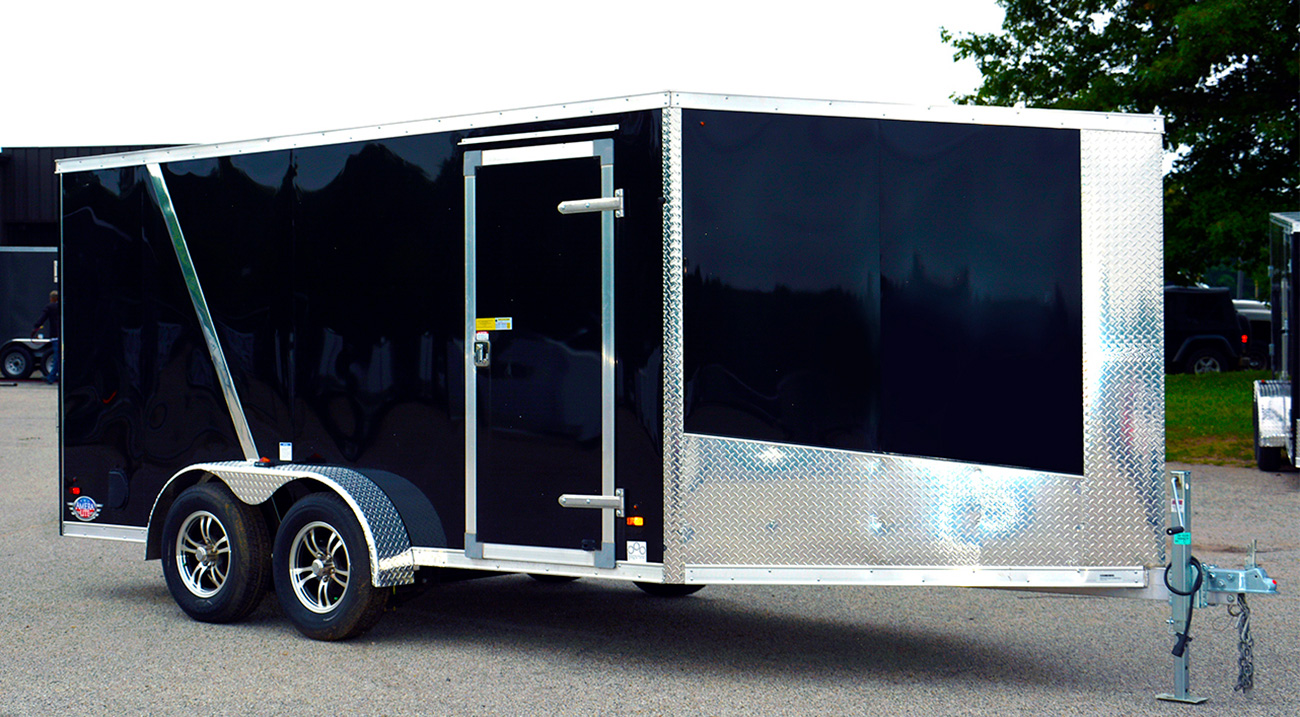

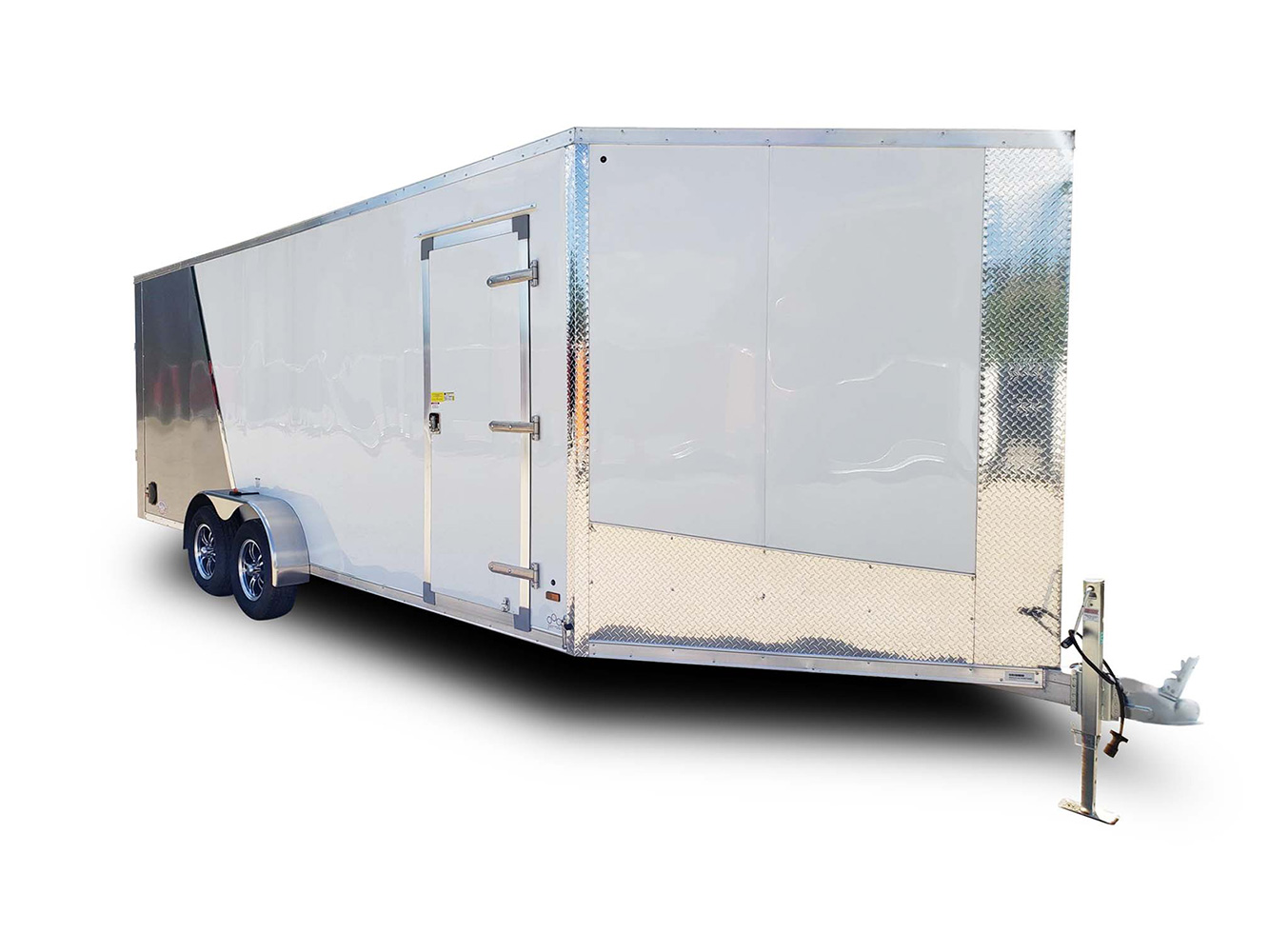

  • 32" Side Door with Flush Lock only (No Bar Lock)
  • 1) Fuel Door
  • Aluminum Bar Locks and Hinges
  • 24" Stoneguard
  • .030 Metal with Screwless Sides
  • Bright Anodized Metal on all 3 Front Corners
  • Heavy Duty 3" Top & Bottom Trim
  • 12" High 3/8" Drymax Kickplate

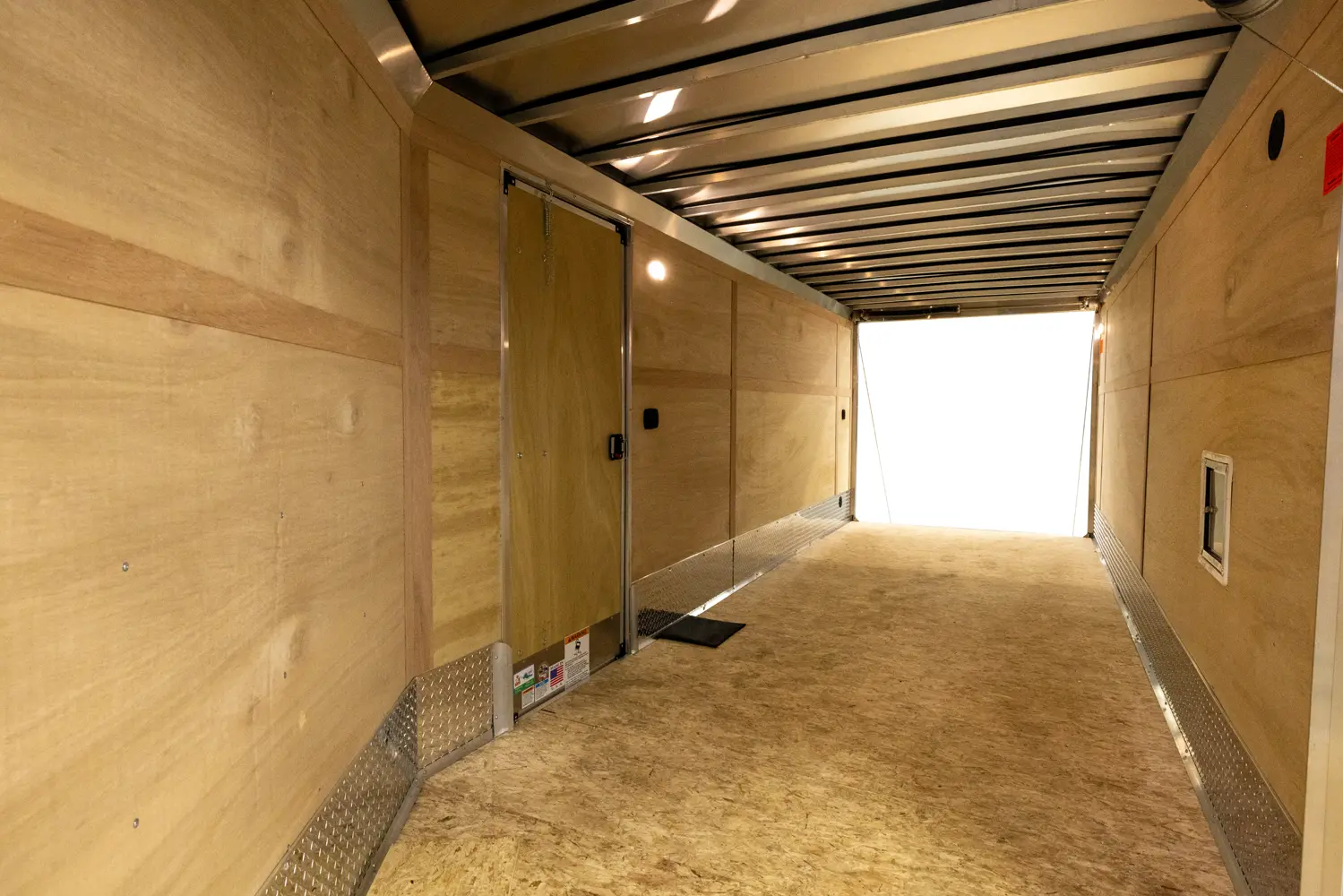

  • 9MM White Vinyl Walls
  • 3/4" Engineered Wood Floor
  • LED Clearance Lights and Tail Lights
  • Operational LED Back-up Lights
  • 2) Interior Dome Lights
  • Switch on Wall for Dome Lights
  • 1) Loading Light Above Front Ramp with Switch
  • 1) Loading Light Above Rear Ramp with Switch
  • 9) 1200# Floor D-Rings Shipped Loose
  • Aluminum Door Hold Backs
  • Sand Pad Shipped Loose
  • 1000# Ramp Door
  • 4) 5000# Floor D-Rings
  • 6) 1200# Wall D-Rings
  • Rear Fold-Down Stabilizer Jacks
  • Interior Mount for Spare Tire Shipped Loose
  • ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
  • 6" Extra Height Including Rear Door
  • 6" Extra Height to Side Door
  • 2000# Ramp Door
  • Rear Fold-Down Stabilizer Jacks
  • 4) 5,000# Floor D-Rings
  • 6) Wall D-Rings
  • 1) Interior Mount for Spare Tire Shipped Loose
  • ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
  • 55" Bar Lock on Side Door
  • 12" Extra Height Including Rear Door
  • 6" Extra Height to Side Door
  • 2000# Ramp Door
  • Rear Fold-Down Stabilizer Jacks
  • 4) 5,000# Floor D-Rings
  • 6) Wall D-Rings
  • 1) Interior Mount for Spare Tire Shipped Loose
  • ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
  • 55" Bar Lock on Side Door
  • Available with Spread Torsion Axles and Drop Skirting only
  • 8.5' Wide Tandem Axle Trailer Models Only
  • Not Available on Trailers Less than 20' Long
  • Flip-up Door Centered Over Axles
  • Includes Fender Attached to Door
  • Removable Wheel Well
  • Eberhard Recessed Door Latch
  • Gas Shocks on Door
  • Available with Torsion Axles Only (Does Not Include Torsion Upgrade)
  • Includes Drop Skirting
  • 2 Separate Fenders Around Tires
  • Sides Dropped in Fender Area
  • Can be Used with Standard or Spread Tandem Axles
  • 2) 4' LED Lights with 1) Switch
  • 2) 110 Volt Interior Recepts
  • 30 Amp Service Panel
  • 30 Amp Marine Plug
  • 25' Long Cord for 30 Amp Marine Plug
  • 4) 4' LED Lights
  • 2) Switches for 4' Lights
  • 4) 110 Volt Interior Recepts
  • 30 Amp Service Panel
  • 30 Amp Marine Plug
  • 25' Long Cord for 30 Amp Marine Plug
  • 4) 4' LED Lights
  • 2) Switches for 4' Lights
  • 4) 110 Volt Interior Recepts
  • 50 Amp Service Panel
  • 50 Amp Marine Plug
  • 25' Long Cord for 50 Amp Marine Plug
  • Black Trim
  • Black Stoneguard
  • Black Fenders
  • Black Aluminum Rims
  • Black Bar Locks and Hinges
  • Black Screws on Trim and Stoneguard
  • Screwless Glued Seams (No S-Lock)
  • No Warrantee on any Paint Peel or Chipping
  • 12" High ATP Interior Kickplate over top of 3/8" Drymax
  • 9" Deep
  • Color Matched Aluminum Skin
  • 2) LED Backup Lights under Spoiler with 1) Switch
  • Double Doors- Reduces Opening By 6"
  • Does not Affect Ramp Door Opening Height

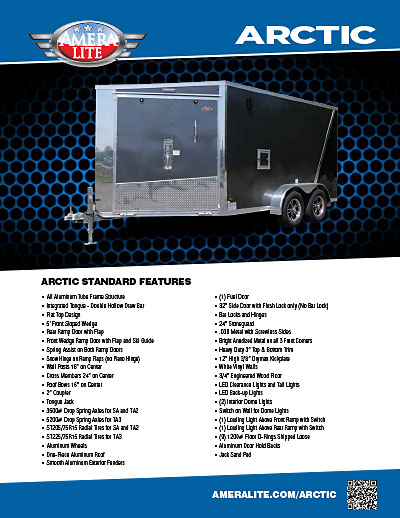

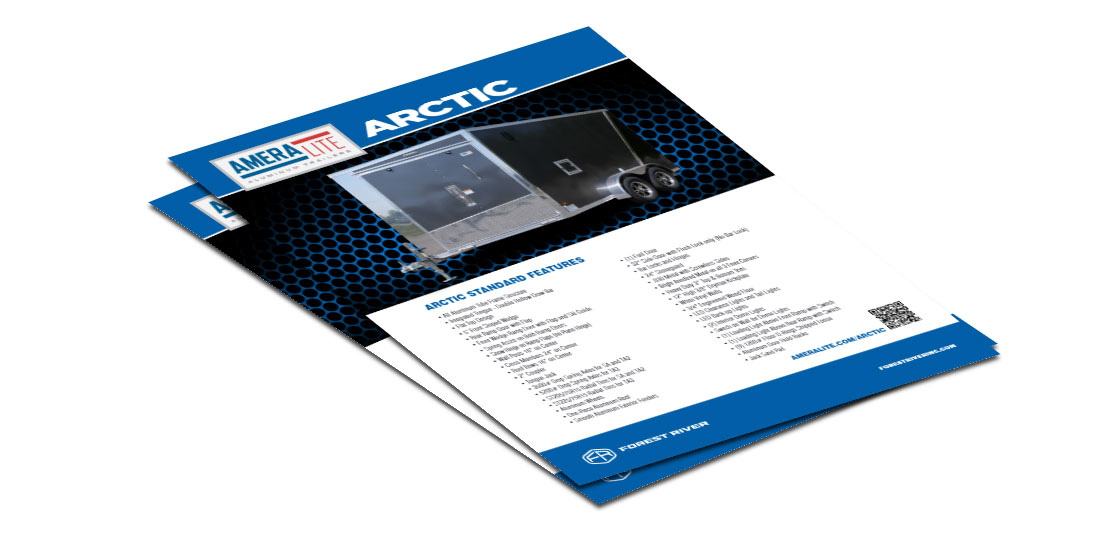

Literature
